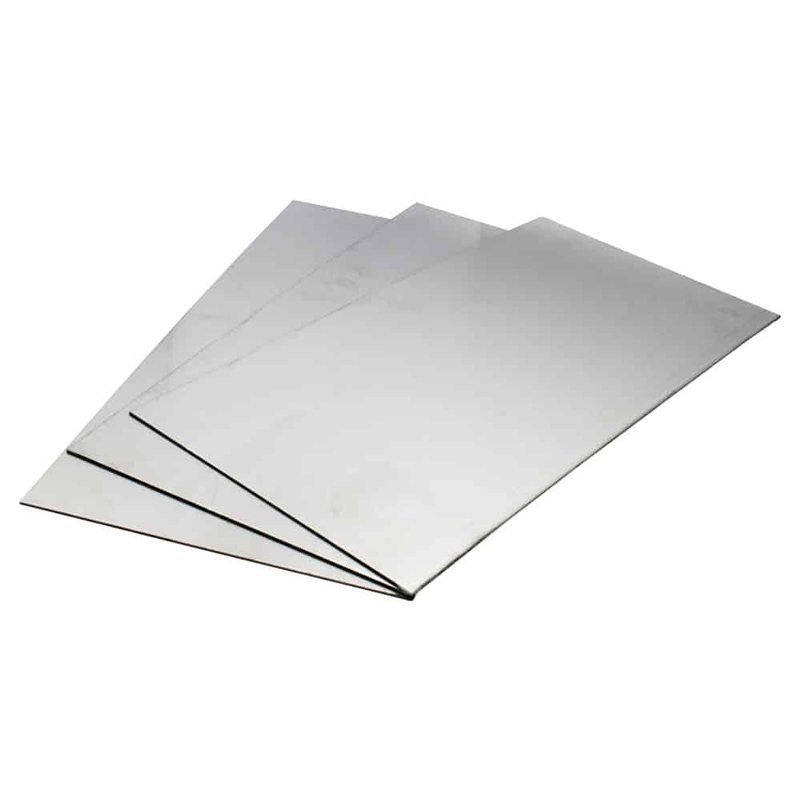

309S stainless steel plate sheet

309S stainless steel plate is an austenitic chromium-nickel stainless steel material with excellent high-temperature oxidation resistance. It can be repeatedly heated and used in an environment below 980°C [2]. The material contains 23% chromium and 13% nickel. The high-temperature performance is enhanced by adding elements such as molybdenum and tungsten. It has the characteristics of non-magnetic in solid solution state and good creep resistance [1]. Its surface treatment process includes cold rolling 2B, hot rolling NO.1 and other types, and supports secondary processing such as mirror drawing, stamping and bending. As an industrial metal material, it is widely used in high-temperature and high-pressure scenarios such as petrochemical equipment, high-temperature furnace tubes, incinerators, etc.

Product Name	Stainless Steel Plate/Sheet
Standard	ASTM,JIS,DIN,GB,AISI,DIN,EN
Material	201, 202, 301, 301L, 304, 304L, 316, 316L, 321, 310S, 904L, 410, 420J2, 430, 2205, 2507, 321H, 347, 347H, 403, 405, 409, 420, 430, 631, 904L, 305, 301L, 317, 317L, 309, 309S 310
Technique	Cold drawn, Hot rolled, Cold rolled and Others.
Width	6-12mm or Customizable
Thickness	1-120mm or Customizable
Length	1000 – 6000mm or Customizable
Surface Treatment	BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Origin	China
HS Code	7211190000
Delivery Time	{Delivery Time}
After-sales Service	24 hours online
Production Capacity	{Production Capacity}
Price Terms	EXW, FOB, CIF, CRF, CNF or Others
Loading Port	{Port}
Payment Term	TT, LC,Cash, Paypal, DP, DA,Western Union or Others.
Application	1. Architectural decoration. Such as exterior walls, curtain walls, ceilings, stair handrails, doors and windows, etc.
	2. Kitchen furniture. Such as kitchen stove, sink, etc.
	3. Chemical equipment. Such as containers, pipelines, etc.
	4. Food processing. Such as food containers, processing tables, etc.
	5. Automobile manufacturing. Such as vehicle body, exhaust pipe, fuel tank, etc.
	6. Electronic devices. Such as manufacturing casings, structural components, etc. for electronic devices.
	7. Medical equipment. Such as surgical instruments, surgical instruments, medical utensils, etc.
	8. Shipbuilding. Such as ship hulls, pipelines, equipment supports, etc.
Packaging	Bundle, PVC Bag, Nylon Belt, Cable Tie, Standard export seaworthy package or as Request.
Processing Service	Bending, Welding, Decoiling, Punching, Cutting and Others.
Tolerance	±1%
MOQ	{MOQ}

Composition of Stainless Steel

Steel is an alloy of iron and carbon. Stainless steels are steels containing at least 10.5% chromium, less than 1.2% carbon and other alloying elements. Stainless steel’s corrosion resistance and

mechanical properties can be further enhanced by adding other elements, such as nickel, molybdenum, titanium, niobium, manganese, etc.

Grade	C	Si	Mn	P	S	Cr	Ni	Mo	N	Cu
201	≤0.15	≤0.75	5.5~7.5	≤0.060	≤0.03	16.00~18.00	3.5~5.5	–	–	0.08
202	≤0.15	≤1.00	7.5~10.00	≤0.060	≤0.03	17.00~19.00	4.0~6.0	–	≤0.25
301	≤0.15	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	6.00~8.00	–
302	≤0.15	≤1.00	≤2.00	≤0.035	≤0.03	17.00~19.00	8.00~10.00	–
304	≤0.07	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	8.00~10.50	–
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.03	18.00~20.00	9.00~13.00	–
310S	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	24.00~26.00	19.00~22.00	–
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	10.00~14.00	2.00~3.00
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	16.00~18.00	12.00~15.00	2.00~3.00
321	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	17.00~19.00	9.00~13.00	–
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.03	16.00~18.00		–
2205	≤0.03	≤1.00	≤2.00	≤0.030	≤0.015	22.00~23.00	4.5~6.5	2.5~3.5
2507	≤0.03	≤0.08	≤1.20	≤0.035	≤0.015	24.00~26.00	6.00~8.00	3.0~5.0
904L	≤0.02	≤1.00	≤2.00	≤0.045	≤0.035	19.00~23.00	23.00~28.00	4.0~5.0		1.0~2.0
INCONEL028	≤0.03	≤1.00	≤2.50	≤0.030	≤0.030	≤28.0	≤34.0	≤4.0		≤1.4
MONEL400	≤0.30	≤0.5	≤2.00	–	≤0.024	–	≥63.0	–		≤34.0
INCONEL800	≤0.10	≤1.00	≤1.50	–	≤0.015	≤23.0	≤35	4.0~5.0	–	≤0.75
